New pallet rack for Tucson & Southern Arizona
    Pallet Flow Rack in a distribution warehouse

    Pallet Flow Rack in Tucson, AZ

    Pallet flow rack in Tucson, AZ is built for grocery, produce and cold storage, where the oldest pallet has to ship first. A pallet flow rack system loads from the back aisle, rolls pallets forward on gravity rollers, and picks from the front, so rotation is FIFO by design.

    Flow racking also splits restock and pick traffic into separate aisles. That matters in busy food and beverage buildings around the airport and along I-10 in Southeast Tucson.

    Call (520) 335-3953

    How Pallet Flow Lanes Are Sized

    Each lane is a set of roller tracks pitched toward the pick face, with speed controllers to keep loads in check and a separator at the exit. Roller pitch and brake spacing follow pallet weight and the condition of the pallet bottoms.

    1

    Pallet weight range

    Light and heavy pallets roll differently. We ask for the lightest and heaviest so the lanes behave at both ends.

    2

    Lane depth

    Depth follows pallets per SKU and turns. Deeper lanes save aisles but take longer to restock.

    3

    Pick face

    The front can feed a pick module or a lift truck. We plan it around how orders leave the building.

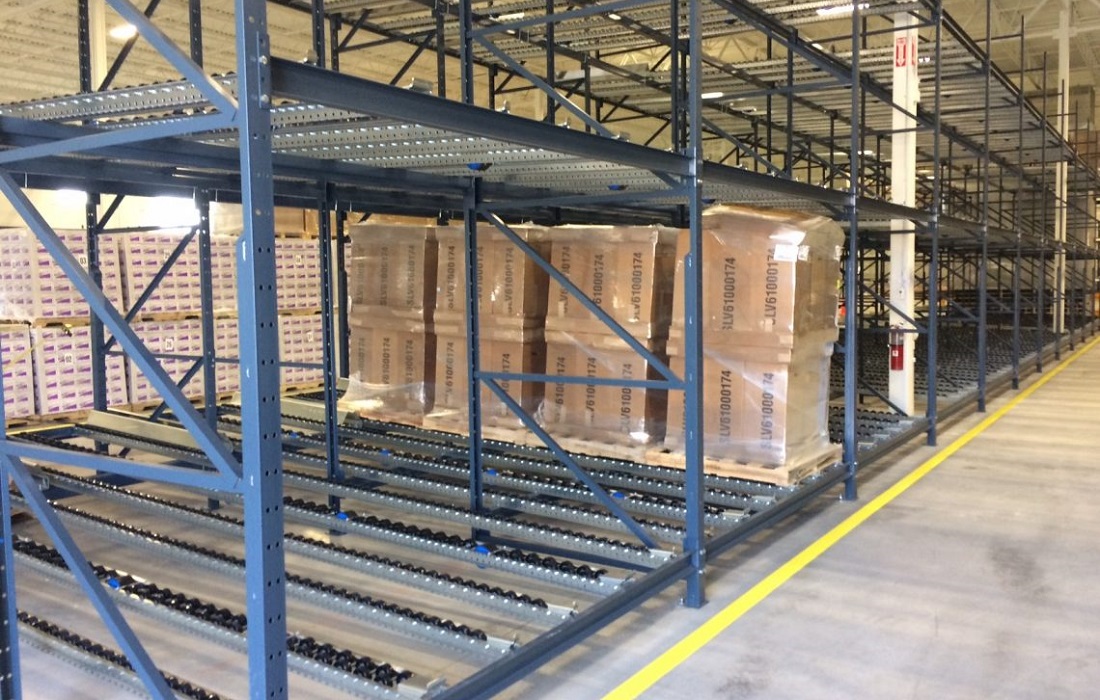

    Pallet flow rack lanes with gravity rollers
    Pick face of a pallet flow rack system

    Flow Through Racking for Produce and Cold Storage

    Nogales is the leading U.S. port by tonnage for fresh Mexican produce, and a lot of it is cooled, stored and re-shipped along I-19 and in Tucson. Flow through racking in a cooler or freezer keeps dated stock moving and keeps forklift trips short in a room that costs money to chill. Cold-storage installs get cold-rated components.

    Grocery and food distributors near Valencia Rd and Palo Verde Rd use pallet flow for fast SKUs and pushback rack for slower ones. Up at the border, see Nogales and Amado.

    Flow Racking System Quote and Installation

    You get a CAD layout with lane counts and depths, then an itemized quote with lead time confirmed. Pallet flow is a high-density system and is not part of standard quick ship.

    Experienced installation crews we schedule and manage set the frames, anchor them to the floor, install tracks and brakes, and run test pallets through each lane. Summer installs start early; during monsoon season (June 15 – September 30) we plan deliveries around storm days.

    Plan a Pallet Flow Layout

    Send the basics and we will come back with a layout and pricing. Prefer to talk? Call (520) 335-3953.

    What's Included:

    • Free warehouse consultation
    • CAD layout drawings
    • Itemized project quote
    • Rack type recommendations
    • Lead time confirmed on the quote

    We respect your privacy. Your information will never be shared.

    Pallet Flow Questions

    Where We Install Pallet Flow Rack in Southern Arizona

    Delivery and installation from Tucson to the towns below.

    Other Rack Systems We Supply

    Rotate Dated Stock Automatically

    Call (520) 335-3953 or request a quote.
